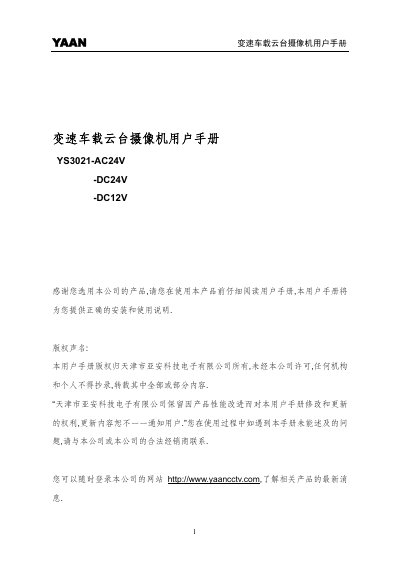

This manual is the user manual for YAAN variable speed car-mounted PTZ camera YS3021-AC24V-DC24V-DC12V. It mainly introduces the safety precautions, terms, product applications, product features, technical parameters, installation, screen menu, special function shortcuts, appendices and other contents.
The YAAN YS3021‑AC24V is a variable‑speed vehicle‑mounted PTZ camera designed for harsh outdoor and mobile environments. It features a dual‑side design with interchangeable cameras, infrared lights, laser or thermal imaging modules, and a robust rare‑earth alloy housing with IP66 protection.
This manual provides safety guidelines, terminology, product applications, technical specifications, step‑by‑step installation instructions, detailed screen‑menu navigation, special function shortcuts, and maintenance and troubleshooting procedures. This manual is written in Chinese.
| Input Voltage (AC) | AC24V ±10%, 50/60Hz |
|---|---|
| Input Voltage (DC) | DC24V ±10% / DC12V ±10% |
| Power (no heating) | ≤80 W |
| Power (with heating) | ≤100 W |
| Horizontal Rotation Angle | 0° ~ 360° continuous |
| Vertical Rotation Angle | -90° ~ +45° |
| Horizontal Rotation Speed | 0.1 ~ 60°/s |
| Vertical Rotation Speed | 0.1 ~ 60°/s |
| Supported Protocols | V0.0, YAAN, Pelco‑P, Pelco‑D |
| Preset Positions | 80 |
| IP Protection Rating | IP66 |
| Maximum Single‑Side Load | 2 kg |
| Operating Temperature Range | -35 °C ~ +65 °C |
The camera is rated IP66, providing protection against dust and water ingress.
The device can store up to 80 preset positions.
Each side can support a maximum load of 2 kg.
It operates from –35 °C to +65 °C.
