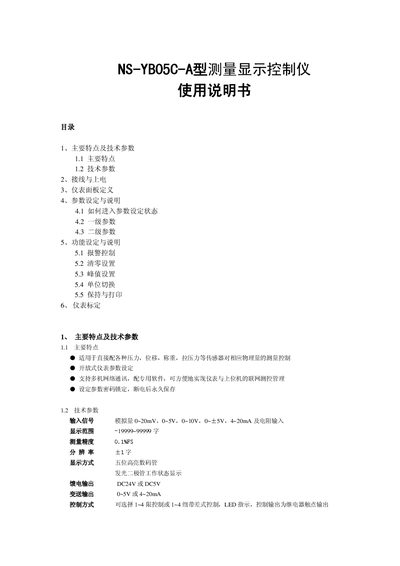

This document is the user manual for the NS-YB05C-A type measuring display controller. The instrument is suitable for measuring and controlling various physical quantities such as pressure, displacement, weighing, and tension and compression force of different sensors. It features open-ended instrument parameter setting, support for multi-machine network communication, and password lock for set parameters.
This manual describes the main features and technical specifications of the NS‑YB05C‑A measurement display controller, including its ability to measure physical quantities such as displacement, weight, and pressure, and to communicate with a host computer for dual‑channel control.
It also explains how to configure parameters, set alarm thresholds, switch units, and use the RS232/RS485 interfaces. Wiring diagrams, power requirements, and panel definitions are provided to aid installation and operation. This manual is written in Chinese.
| Input signal range | 0‑20 mV, 0‑5 V, 0‑10 V, 4‑20 mA |
|---|---|
| Communication interface | RS232 or RS485, 300‑9600 bps |
| Operating temperature | 0‑55 °C |
| Relative humidity | 85 %RH |
| Dimensions | 160 × 80 mm |
The controller supports RS232 and RS485 interfaces with selectable baud rates from 300 to 9600 bps.
