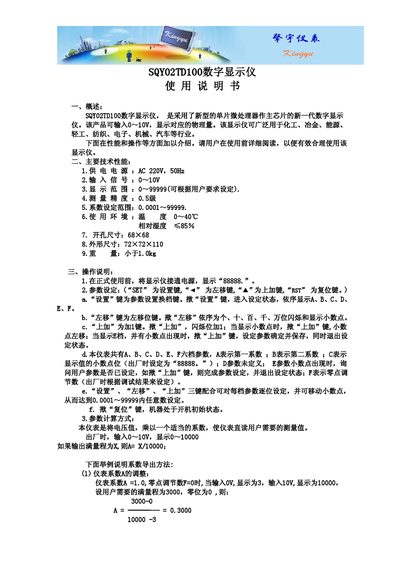

SQY02TD100 digital display instrument is a new generation digital display instrument with a new single-chip microcomputer as the main chip. It can input 0～10V and display the corresponding physical quantity. It is widely used in chemical, metallurgical, energy, light industry, textile, electronic, mechanical, automotive and other industries.
The manual introduces the SQY02TD100 digital display instrument, a next‑generation device that accepts a 0‑10 V input and displays the corresponding physical quantity. It is suitable for use in chemical, metallurgical, energy, light industry, textile, electronics, mechanical and automotive sectors.
Key sections cover technical specifications, step‑by‑step operation, parameter calculation and setting, wiring connections, and the contents of a complete instrument package. Users are guided on how to power the device, adjust coefficients, set alarm limits, and perform zero‑point calibration. This manual is written in Chinese.
| Power supply | AC 220 V, 50 Hz |
|---|---|
| Input signal range | 0 ~ 10 V |
| Display range | 0 ~ 99 999 (user‑adjustable) |
| Measurement accuracy | 0.5 grade |
| Coefficient setting range | 0.0001 ~ 99 999 |
| Operating temperature | 0 ~ 40 °C |
| Relative humidity | ≈85 % |
| Mounting hole size | 68 × 68 mm |
| Dimensions | 72 × 72 × 110 mm |
| Weight | < 1.0 kg |
It displays “88888.” after the power is connected.
It requires an AC 220 V, 50 Hz power supply.
