ZXS-F3YD-M2-A type synchronous tension control system is a high-precision synchronous tension control system designed for flexographic printing machines. The control system consists of two high-precision potentiometers and floating rods to form a tension detection system to detect the tension of the main motor and the reeling and unwinding traction, thereby realizing the synchronous tension control of the three motors.

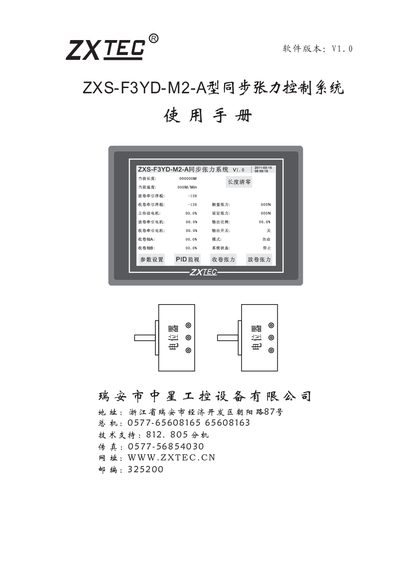

The ZXS-F3YD-M2-A is a high‑precision synchronous tension control system designed for continuous operation and material handling. This manual provides detailed information on the system’s hardware layout, control panel, and functional features.
Key sections include installation guidelines, controller interface description, PID parameter configuration, power supply requirements, and step‑by‑step operating procedures. Safety notes and wiring diagrams are also provided to ensure reliable performance. This manual is written in Chinese.
| Maximum speed | 900 m/min |
|---|
The system can operate up to 900 m/min.
PID parameters are configured in the PID Settings screen (5‑3) where you can adjust proportional, integral, and derivative values.
