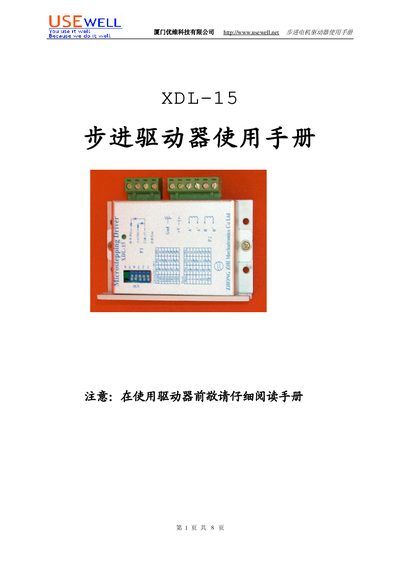

XDL-15 stepper driver manual introduces the features, application range, wiring method, pin definition, setting of subdivision and current of the driver.
This manual provides an overview of the XDL-15 high‑performance stepping driver, describing its key features such as bipolar constant‑current chopper technology, selectable microstepping (2‑64×), and a drive current up to 1.5 A per phase. It also lists typical applications including small engraving machines, laser marking, CNC equipment, and other precision automation devices.
Detailed sections cover pin definitions, wiring diagrams for 4‑, 6‑ and 8‑wire stepper motors, DIP‑switch settings for microstepping and current, power‑supply requirements, jumper functions for different pulse‑frequency ranges, electrical characteristics, environmental limits, and mechanical dimensions. This manual is written in Chinese.
| Supply voltage range | +12 V – +40 V DC |
|---|---|
| Adjustable output current | 0.1 A – 1.5 A per phase |
| Typical supply voltage | +24 V DC |
| Microstepping options | 2, 4, 16, 64 (400‑12800 steps/rev) |
| Storage temperature | -20 °C – +65 °C |
| Relative humidity | 40 % – 90 % RH |
| Maximum vibration | 6.0 m/s² |
| Cooling method | Natural or forced air |
| Weight | ≈200 g |
| Dimensions (L×W×H) | 92 mm × 62 mm × 28 mm |
The driver operates with a DC supply between +12 V and +40 V.
Microstepping is selected via DIP switches SW4‑SW6, offering 2, 4, 16, or 64‑fold division (400‑12800 steps per revolution).
The driver can deliver up to 1.5 A per phase, adjustable down to 0.1 A.
Set JP1 = off and JP2 = on for frequencies between 2000 Hz and 5000 Hz.
