The 5D-6 blood glucose meter produced by Beijing Yicheng Bioelectronic Technology Co., Ltd. is a small and portable blood glucose meter with a measurement range of 1.7 mmol/L-27.8 mmol/L (30mg/dL-500mg/dL), measurement accuracy of ±0.3 mmol/L and measurement time of 5S±0.5S.

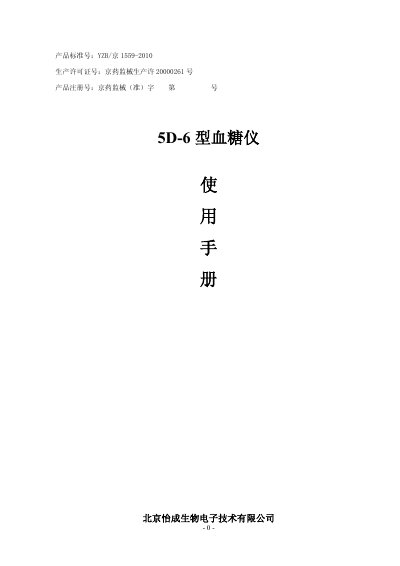

The Yicheng 5D-6 blood glucose meter is a portable device for self‑monitoring of blood glucose. This manual describes its main structure, components, and accessories such as test strips, lancets, and USB cable. It provides step‑by‑step operating procedures, including sample collection, calibration code adjustment, and data upload via USB.
The guide also details performance specifications, environmental operating conditions, error codes, maintenance tips, and warranty information. Users can learn how to read stored results, set the time, and interpret symbols on the LCD screen. This manual is written in Chinese.
| Measurement accuracy | ±0.3 mmol/L |
|---|---|
| Measurement range | 1.7 mmol/L – 27.8 mmol/L (30 mg/dL – 500 mg/dL) |
| Measurement time per test | 5 s ± 0.5 s |
| Memory capacity | 256 test results |
| Dimensions (W×H×D) | 97 mm × 51 mm × 16 mm |
| Weight | 55 g |
| Power consumption | 40 mW |
| Battery | 2 × G13 button cells, 3.0 V total |
| Display units | mmol/L |
It signals an error such as incorrect operation, invalid test strip, insufficient blood volume, or temperature outside the allowed range.
The meter can store up to 256 test results, which can be recalled using the memory key.
The meter measures glucose concentrations from 1.7 mmol/L to 27.8 mmol/L (30 mg/dL to 500 mg/dL).
