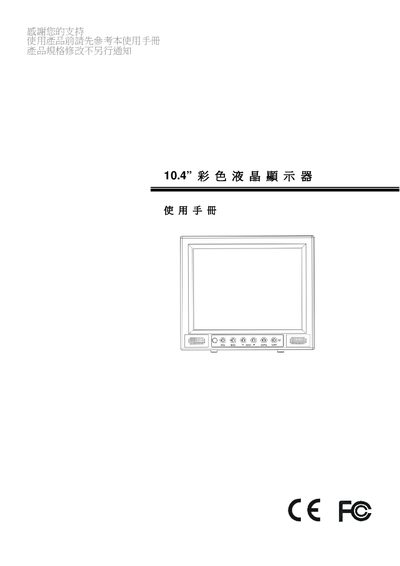

10.4-inch color liquid crystal display user manual. This manual introduces the characteristics and features of the product and how to use it.
The manual begins with safety warnings, including cautions against electric shock, the prohibition of inserting metal objects, and the requirement to use qualified service personnel for any repairs. It also details proper cleaning, handling of accessories, ventilation requirements, and precautions for high‑temperature environments.
Later sections describe the monitor’s features, connection ports, and detailed technical specifications such as display resolution, contrast ratio, viewing angles, power requirements, and dimensions. The document concludes with a specifications table and notes on warranty and service procedures. This manual is written in Chinese.
| Display size | 10.4 inches |
|---|---|
| Maximum resolution | 1024 x 768 @ 60 Hz |
| Contrast ratio | 500:1 (Typ) |
| Brightness | 350 cd/m² |
| Viewing angle | 89° left/right/up/down |
| Response time | 40 ms (Typ) |
| Power input | DC 12 V |
| Maximum power consumption | 17.2 W |
| Weight | 1.86 kg |
| Dimensions (W×D×H) | 261 mm × 63 mm × 223 mm |
| Operating temperature | -10 °C to 50 °C |
No. Use only a dry cloth after disconnecting power; liquid cleaners or sprays must not be applied to the screen.
The monitor consumes up to 17.2 W at maximum load.
