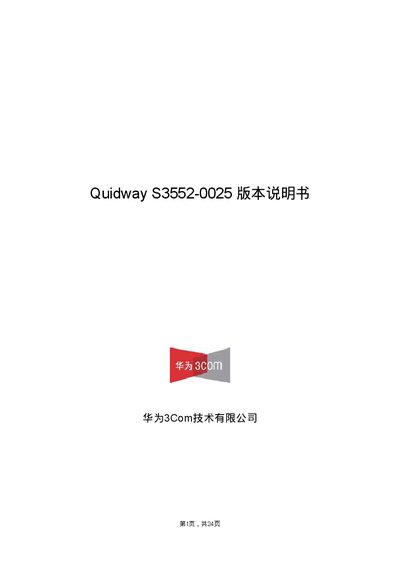

This document is the version manual of Quidway S3552-0025 from Huawei 3Com Technology Co., Ltd. It provides detailed information about the product version, version change description, version problems and avoidance measures, problem-solving list, supporting documents and version upgrade operation guide.
The document details the version numbering, release history, and feature changes for the Quidway S3552 series, including hardware and software updates such as ARP enhancements and new MIB files. It lists the supported models, memory and flash requirements, and the specific firmware and component versions.
It also describes command‑line configuration options (e.g., ARP forward‑mode, rate‑limit, ICMP redirect), and step‑by‑step upgrade procedures using Xmodem, TFTP, and FTP protocols, with prompts for selecting the appropriate download method and confirming flash writes. This manual is written in Chinese.
| Series | S3500 series |
|---|---|
| Model Numbers | S3552GP, S3528G/P, S3552F |
| Memory Requirement | 64M |
| Flash Requirement | 16M |
| BOOTROM Version | Bootrom200 |
| Firmware Version | Version 3.10, RELEASE 0025 |
| QUIDVIEW Version | Quidview DM 3.10-3109 |
| CAMS Version | CAMS 1.20-0360 |
| WEB Version | wnm2.2.2-0005 |
Select the Xmodem download protocol in the boot menu, set the Xmodem parameter, and confirm the file transfer to flash.
Enable with `icmp redirect send`; disable with `undo icmp redirect send`.
Use `arp forward-mode {transparent | control}` to select the desired ARP handling mode.
