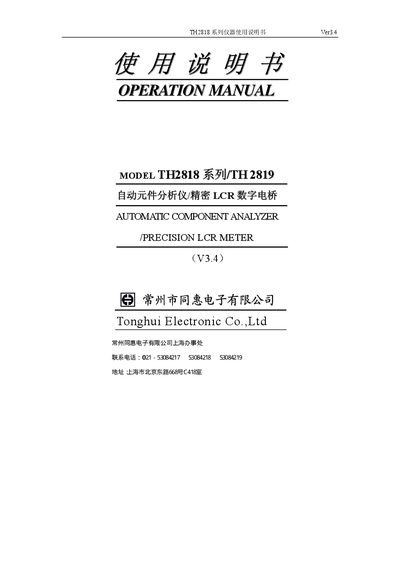

TH2818 series instrument user manual, introduces the composition, installation, panel description, basic operation, power on, [LCRZ] menu key description and other contents
This manual covers the complete setup of the TH2818 series automatic component analyzer, including unpacking, power connection, and environmental requirements. Detailed explanations of the front and rear panels, menu functions, and basic operation procedures are provided.
Additional sections describe advanced measurement settings, handler interface configuration, and warranty terms. The document is organized into chapters for installation, panel description, LCRZ/TRANS/SYSTEM menus, file management, measurement examples, and service information. This manual is written in Chinese.
| Operating temperature range | 5 °C ~ 40 °C |
|---|---|
| Maximum storage humidity | ≤ 85 % |
| Internal voltage of Handler interface | +5 V |
The instrument should be stored and operated at temperatures between 5 °C and 40 °C.
Relative humidity should not exceed 85 % when the instrument is stored.
The Handler interface board uses a fixed internal voltage of +5 V.
