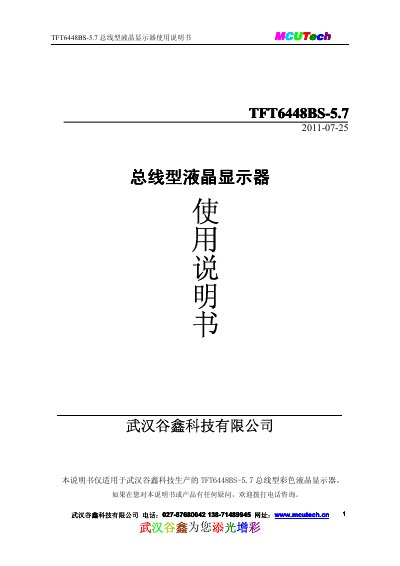

This manual introduces the use of TFT6448BS-5.7 bus-type color liquid crystal display, including introduction, working principle, performance parameters, pin definition, display memory and pixel correspondence, color composition, register description, display data read and write mode, bus timing, interface circuit, software writing and advanced functions.
This manual describes the TFT6448BS-5.7 liquid crystal display module, a 5.7‑inch TFT panel with 640×480 resolution and 256‑color capability. It outlines the module’s low‑power operation, LED backlight, and mechanical dimensions, and provides the pin‑out and interface details for connecting to microcontrollers such as MCSS1, MCS96, MC68, ARM, and DSE.
The document includes a functional description of the register set, wiring diagrams, power supply requirements, and precautions for handling the LCD. It also lists the pin definitions for the 24‑pin FFC connector and provides mechanical drawings for mounting the display. This manual is written in Chinese.
| Display resolution | 640×480 |
|---|---|
| Diagonal size | 3.7 inches |
| Power supply voltage | 3.3 V |
| Power consumption | 200 mA |
| Operating temperature range | -30 °C to 85 °C |
| Storage temperature range | -40 °C |
| Interface type | Parallel interface |
| Backlight type | LED |
| Color depth | 256 colors |
| Connector pin count | 24‑pin FFC |
It supports 256 colors.
The module operates at 3.3 V.
The display area measures 115.9 mm × 87.67 mm.
