Digital Control DigiTrak MFD 3-6500-14-B1 User Manual

This manual describes the functions, installation, operation, maintenance, and troubleshooting of the Multi-Function Display (MFD) and how to use the MFD to configure and control DigiTrak® systems.

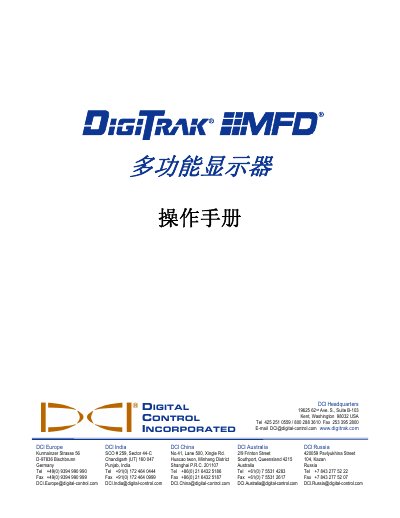

Digital Control DigiTrak MFD 3-6500-14-B1 User Manual - cover page
Brand
DigiTrak
Category
Industrial Robot
Document type
User Manual
Language
Chinese
Pages
20
File format
PDF
File size
751 KB
Published
12 March, 2012
Updated
30 September, 2023
MD5 checksum
17BADE2FCF1E4BE36ECB997135C21E9E
PDF
Digital Control DigiTrak MFD 3-6500-14-B1 User Manual PDF

About this manual

The DigiTrak MFD is a remote multi‑function display that works with DigiTrak Mark, Eclipse and TensiTrak receivers. This manual explains how to power the unit, configure its settings, and operate the various display modes.

Safety procedures, basic command instructions, menu navigation, and default configuration values are provided, along with the limited warranty terms and FCC compliance information. This manual is written in Chinese.

What's inside

  • Safety procedures and warnings
  • Overview
  • Basic command instructions
  • Power on and battery installation
  • Main menu screen
  • DigiTrak Mark series mode
  • Eclipse mode
  • TensiTrak mode
  • Limited warranty

Specifications

Product numberAC4490-200
Default distance unitEnglish (feet/inches)
Default pitch unitspercent (%)
Default tilt angle unitspercent (%)

Frequently asked questions

How do I power the DigiTrak MFD?

You can power the MFD either by inserting the DCI nickel‑cadmium battery pack or by connecting the supplied DC power cable to a 12 V source.

Is the MFD FCC compliant?

Yes, the device complies with FCC Part 15 Class B requirements.
