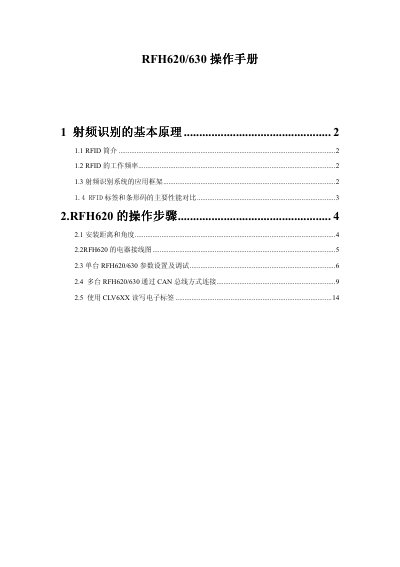

This document provides an operation manual for RFH620/630, including the basic principles of radio frequency identification, RFID frequencies, and the application framework of RFID systems.
The manual introduces RFID fundamentals and the RFH620/630 reader, which integrates antenna and reader in a single unit. It explains the supported frequency bands (HF 13.56 MHz ± 7 kHz) and the types of RFID tags it can read, including ISO/IEC15693 tags.
Detailed sections cover installation distance and angle, electrical wiring diagrams, single‑unit parameter configuration via the terminal port, and multi‑unit CAN‑bus networking. The guide also describes using the CLV6XX device for tag read/write operations and trigger‑based scanning. This manual is written in Chinese.
| Operating frequency (HF) | 13.56 MHz ± 7 kHz |
|---|---|
| Maximum detection distance | 160 mm |
| Device ID | Configurable per unit |
It operates on the high‑frequency band at 13.56 MHz ± 7 kHz.
Connect the units via CAN H and CAN L lines, share GND, and link the shield to the Shield pins; then configure Master/Slave or Server settings in the software.
Connect the CLV6XX to the reader using either a serial cable or Ethernet, then configure the IP addresses and data format as described.
