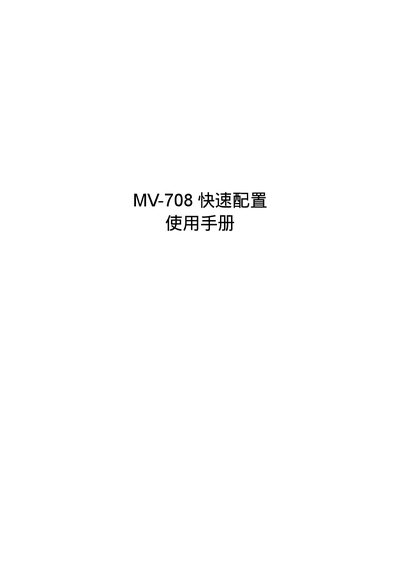

This document is the quick configuration user manual for MV-708. It introduces the panel, device connection, structure diagram, and configuration steps. It also includes the steps for installing and configuring mServer video version.
The manual begins with a description of the MV-708 front panel, showing the SIM card slot, antenna connector, RS232 port, video input BNC, status LEDs and other indicators. It then details how to insert the SIM card, connect the antenna, video cable, and configuration cable, and power the unit.
Subsequent sections guide the user through logging into the device via a serial terminal, configuring the data‑center IP address and port, installing and configuring the accompanying mServer software, and troubleshooting common issues such as the device not coming online. This manual is written in Chinese.
| Baud rate | 38400 |
|---|---|
| Flow control | None |
| Default data‑center port | 9000 |
| Protocol | ETCP |
Open a serial terminal, select the correct COM port, set the parameters (38400‑8‑N‑1), then enter username "root" and password "1234" to access the main menu.
Refer to Appendix A, which lists checks for SIM card insertion, antenna connection, network status of the data‑center, port mapping, and device configuration.
Run "mServer Video Install.exe" to install, then launch the mServer shortcut and configure the service port (default 9000) and protocol (ETCP).
