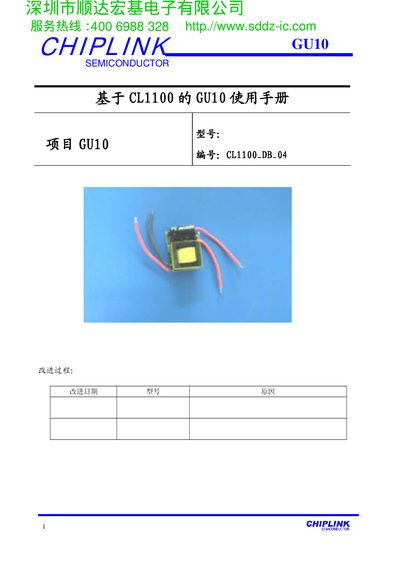

This document is a user manual for CHIPLINK 1 SEMICONDUCTOR GU10 based on CL1100. It describes the input characteristics, output characteristics, performance characteristics, protection functions, and environmental requirements of the product.
This manual covers the CL1100 GU10 semiconductor module, detailing its electrical characteristics, safety protections, and test procedures. It includes input and output specifications, performance data, and component listings for the demo board.
The document also describes transformer specifications, inductance requirements, and important waveforms such as Cs and Vds under various load conditions, helping users verify proper operation and compliance with safety standards. This manual is written in Chinese.
| Input voltage range | 95 V – 265 V |
|---|---|
| Output voltage | 12 V |
| Output current | 300 mA |
| Output power | 3 W |
| Total harmonic distortion | 1.58 % |
| Inductance (LP N1) | 1.25 – 1.45 mH |
| Leakage inductance | < 50 µH |
The module operates with an input voltage from 95 V up to 265 V.
The output voltage is fixed at 12 V.
The maximum output current is 300 mA.
