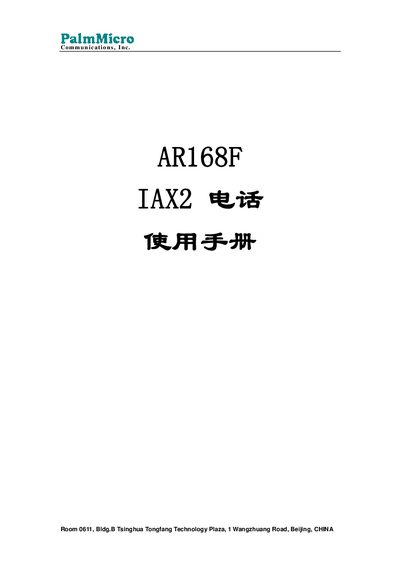

The document provides information on the specifications, features, hardware and software characteristics, and usage environment of Communications, Inc.'s AR168F IAX2 phone. It also includes instructions on installation, configuration, basic operations, and software upgrade.
This manual describes the AR168F IAX2 telephone’s hardware features, including its MCU, memory, codec, display, Ethernet port, and power requirements. It also outlines the device’s environmental specifications such as dimensions, operating temperature, storage temperature, and humidity range.
Installation procedures, basic operation (calling, transfer, forward, call waiting), and configuration via the web interface are covered. Network settings, supported protocols (DHCP, PPPoE, HTTP, etc.), and advanced functions like hotline and echo cancellation are also detailed. This manual is written in Chinese.
| Main MCU | AR1688 (60 MHz MCU, DSP72 MIPS) |
|---|---|
| SRAM | 116 KB |
| Codec | 18‑bit high‑performance |
| Display | 2 × 16 character LCD |
| Power Supply | AC 100‑220 V input, 9 V DC 1 A output |
| Dimensions | 200 × 180 × 85 mm (L×W×H) |
| Operating Temperature | 0 °C to 50 °C |
| Humidity | 10 % to 90 % RH |
It can handle up to ten simultaneous calls.
The device requires an AC input of 100‑220 V and provides a 9 V DC output at 1 A.
