This document introduces the features, performance, and usage methods of the B6TS-１６LF touch sensor developed by Omron Warehousing Co., Ltd. It also provides precautions when using the touch sensor. The document mentions methods to prevent false triggering and misoperation, as well as measures to prevent water or corrosive gas ingress and false triggering caused by interference. Additionally, the document recommends avoiding direct contact with the electrodes and provides information on adjustable parameters.

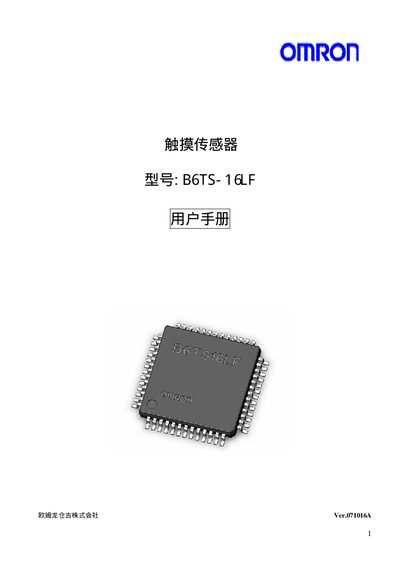

This manual describes the Omron B6TS-16LF touch sensor, a CMOS‑based capacitive sensor IC packaged in a 52‑pin TQFP. It explains the sensor’s functions, performance, and how to integrate it safely into equipment.
Key sections cover safety precautions, transport and storage requirements, pin assignments, operation modes, measurement methods, serial communication, command set, electrical characteristics, mechanical dimensions, and warranty information. This manual is written in Chinese.
| Package | 52‑pin TQFP plastic package |
|---|---|
| Measurement Pins | 16 independent measurement pins |
| Storage Temperature (sealed) | 5 °C – 40 °C |
| Recommended Insulation Thickness (resin) | ≤ 2 mm |
| Recommended Insulation Thickness (glass) | ≤ 4 mm |
Only qualified personnel should handle the sensor, the manual must be read and understood, proper grounding and protective circuits are required, and the sensor must not be used in hazardous applications without consulting Omron sales or support.
Store the sealed package at 5 °C – 40 °C and 20 % – 80 % relative humidity for up to one year.
The IC provides 16 independent measurement channels.
