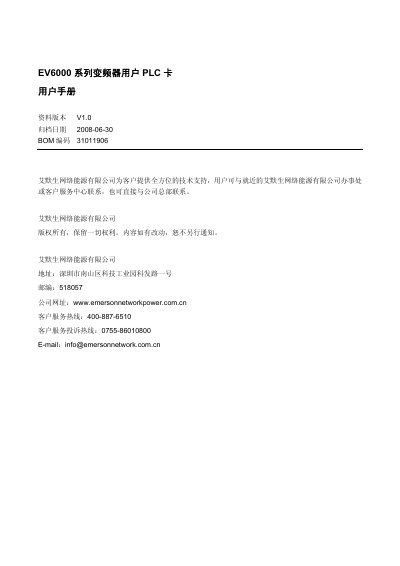

EV6000 series variable frequency drive user PLC card is a programmable controller with switch signal, high-speed pulse, counter and other functions. This manual mainly introduces the hardware specifications, characteristics and usage methods of this product, and has common problem answering, user instruction set summary and other contents, which are convenient for reference.
This manual provides hardware specifications, installation guidelines, wiring instructions, and operation procedures for the Emerson EVC-UPRG PLC card used with EV6000 series inverters. It includes safety information, product overview, and detailed configuration of I/O points, communication ports, and programming features.
The document also covers troubleshooting, common fault codes, and appendices with function code tables, special registers, and quick‑reference instruction lists to aid engineers in setup, maintenance, and integration of the PLC card into control systems. This manual is written in Chinese.
| Input points | 6 points |
|---|---|
| Output points | 4 points |
| High‑speed inputs | 2 channels |
| User program capacity | 6k steps |
| Data block size | 4096 D elements |
| Communication ports | 2 RS485 ports (CN4 RJ45, CN6 SMKDSP15) |
| Recommended signal cable size | 0.8‑1.0 mm² (AWG18‑20) |
| Output voltage range | 5Vdc‑24Vdc |
| Maximum resistive load per output | 5 mA (5Vdc‑24Vdc) |
The PLC card has 6 input points, of which 2 are high‑speed inputs.
The card includes two RS485 communication ports: CN4 (RJ45) and CN6 (SMKDSP15).
Use multi‑strand copper conductors with a cross‑section of 0.8‑1.0 mm² (AWG18‑20).
