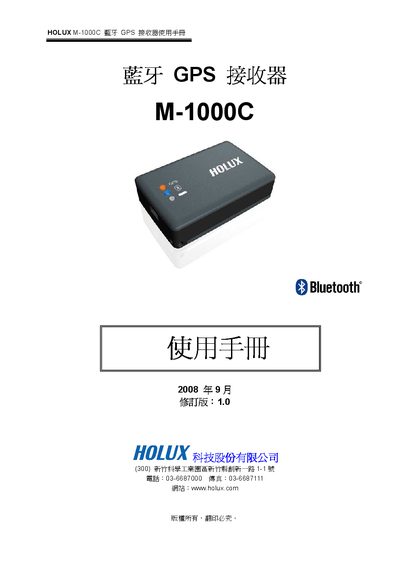

HOLUX M-1000C Bluetooth GPS Receiver User Manual, introduces the product's features, technical specifications, usage methods, installation methods, etc.
The HOLUX M-1000C is a Bluetooth‑enabled GPS receiver that integrates a USB interface, rechargeable battery and low‑power MTK MT3329 chipset. It supports up to 66 satellites, provides NMEA0183 V3.01 data output and can be paired with PDAs or other devices via Bluetooth.
The manual includes product introduction, package contents, main functions, technical specifications, installation steps, optional accessories, software setup, warranty information and a troubleshooting guide. This manual is written in Chinese.
| Satellite search channels | 66 |
|---|---|
| L1 frequency | 1575.42 MHz |
| Repositioning time | 0.1 s |
| Cold start time | <36 s |
| Power input | 5 V DC ±5 % |
| Dimensions | 62.5 × 41 × 17.1 mm |
| Operating temperature | -10 °C to +60 °C |
| Bluetooth frequency | 2.4 – 2.48 GHz |
Install the MiniGPSViewer software, enable Bluetooth on the PDA, and follow the Bluetooth pairing steps described in section 5.2.
The receiver requires a 5 V DC supply with a tolerance of ±5 %.
The unit measures 62.5 × 41 × 17.1 mm and weighs less than 53 g.
