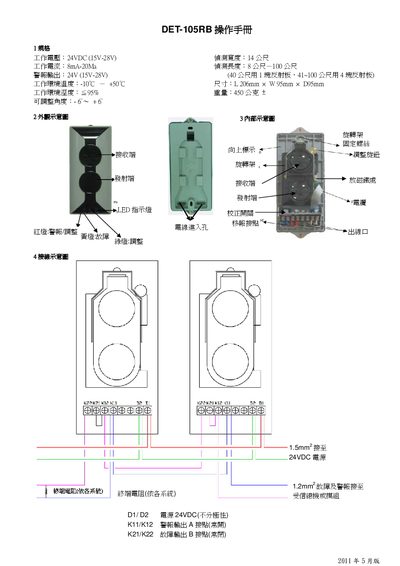

DET-105RB instruction manual, introduces the product's specifications, appearance diagram, wiring diagram, internal diagram, adjustment steps, testing steps and other information.
This manual describes the DET-105RB detector, including its electrical specifications, physical dimensions, operating temperature range, and wiring connections.
It also provides step‑by‑step adjustment procedures, alarm and fault testing methods, and installation recommendations. This manual is written in Chinese.
| Working voltage | 24VDC (15V‑28V) |
|---|---|
| Working current | 8 mA‑20 mA |
| Detection length | 8‑100 m |
| Alarm output voltage | 24V (15V‑28V) |
| Dimensions (L×W×D) | 206 mm × 95 mm × 95 mm |
| Weight | 450 g |
After connecting power to D1/D2, wait about 30 seconds before the device becomes operational.
Terminals K11 and K12 provide the alarm output (normally open).
