BC-360/BC-370 series LED controller is a high-performance overall color power controller, using PWM (pulse width modulation) control technology, can control all four lines three loops (BC-360 common anode / BC-370 common cathode) LED full-color lighting products, with ON/OFF switch controller function, three-channel RGB full-color control, each The maximum output is up to 6A, 17 jump, gradient change mode, gray scale up to RGB 256 levels, can independently select the change speed of each change mode and adjust the brightness, the change pause function, can keep the current LED lamp gray scale and color, function recovery key, can restore the factory settings in case of disorder, and cooperate with the power amplifier to expand the power output infinitely.

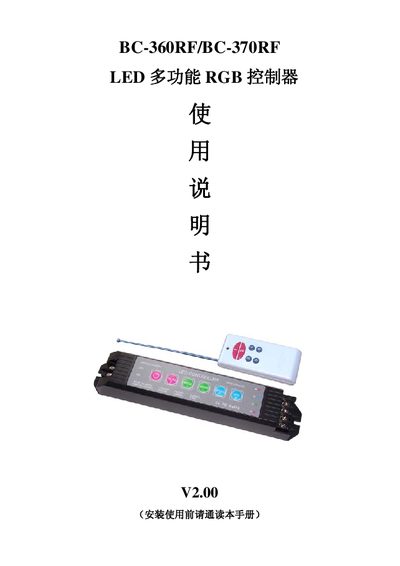

This manual introduces the BC-360RF and BC-370RF series LED controllers, which use PWM technology to drive four‑wire, three‑circuit RGB LED lighting. Both models support remote control with a range of up to 100 m without obstacles and include safety guidelines for proper installation.
The document covers performance specifications, wiring diagrams for common‑anode and common‑cathode LED strips, detailed operation of the controller keys, a full list of lighting modes, fault analysis, and after‑sales service information. This manual is written in Chinese.
| Input voltage | DC12V‑DC24V |
|---|---|
| Maximum load current per channel | 6 A |
| Gray‑level steps per channel | 256 levels |
| Dimensions (L×W×H) | 21 mm × 40 mm × 30 mm |
| Weight | ≈180 g |
| Remote control distance (no obstacle) | 100 m |
The controllers operate on a DC input voltage from 12 V to 24 V.
The remote can control the unit up to 100 meters when there are no obstacles.
Press and hold the SPEED or BRT key for about 3 seconds; the controller will restore all parameters to the factory setting.
