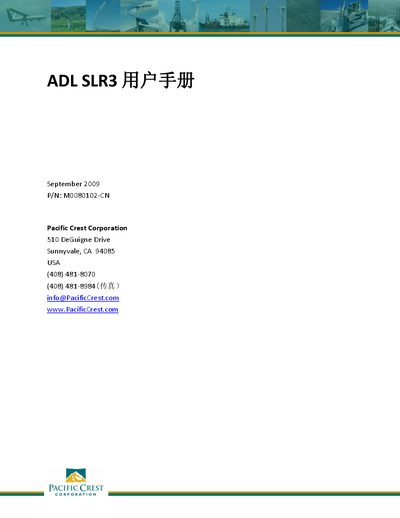

The ADL SLR3 User Manual introduces the use of ADL SLR3 products, including configuration, operation, and installation.
This manual describes the ADL SLR3 GNSS/RTK receiver, its compatibility with Leica Geosystems GNSS antennas and Pacific Crest PDL/RFM96 product families, and the required PC configuration using ADLCONF software. It includes hardware details, LED indicator meanings, connection interfaces, and regulatory compliance.
The document also covers installation steps, configuration parameters, data export/import procedures, and safety guidelines for use in various environments. Compatibility notes, warranty information, and contact details for Pacific Crest Corporation are provided. This manual is written in Chinese.
| Operating frequency range | 390‑470 MHz |
|---|---|
| Data rate (UART) | 9600 bps |
| PC baud rate | 38400 bps |
| Supply voltage | 6.0‑30.0 VDC |
| Dimensions | 2.83 in × 2.5 in × 4.59 in |
The ADL SLR3 operates in the 390 MHz to 470 MHz band.
It requires an external supply of 6.0 V to 30.0 V DC.
