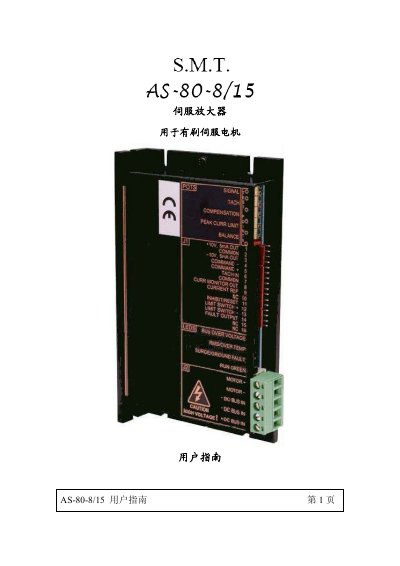

This document is a user guide for the AS-80-8/15 brushed servo amplifier, which provides information on the overview, technical specifications, safety information, installation procedures, control modes, and troubleshooting of the product.
The S.M.T. AS-80-8/15 servo amplifier is a PWM power amplifier designed for brushed servo motors, delivering up to 640 W at 80 V DC. It supports torque and speed control modes and includes safety warnings and diagnostic LEDs.
The guide covers safety information, mechanical installation, connector pin‑outs, wiring diagrams, control mode configuration, and detailed fault‑diagnosis procedures, helping users set up and maintain the device safely and efficiently. This manual is written in Chinese.
| Peak Output Voltage | ±75 VDC (off at 95 VDC) |
|---|---|
| Peak Output Current | 15 A |
| Continuous Output Current | 8 A |
| Maximum Power | 640 W |
| Bandwidth | 2 kHz |
Short J1 pin 11 to the common terminal briefly to reset the driver.
