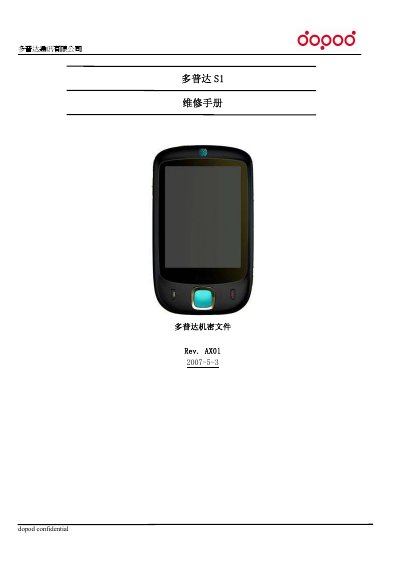

This document is the Dopod S1 Repair Manual from Dopod Communications Co., Ltd. It describes the features and characteristics of the product, including Tri-band EDGE, 2 Mega Pixel camera, Wi-Fi, and Bluetooth.
The dopod S1 Service Manual provides detailed repair information for the S1 PDA, including required tools, repair level definitions, disassembly steps, inspection standards, fault diagnosis, and parts lists. It is intended for authorized service personnel and contains confidential technical data.
The document also includes RF wireless test specifications, connectivity details, and a comprehensive list of accessories and replacement parts, ensuring technicians have all necessary information to service the device safely and effectively. This manual is written in Chinese.
| Dimensions | 99.9 mm × 58 mm × 13.9 mm |
|---|---|
| Weight | 112 g with battery pack |
| Processor | TI OMAP 850, 200 MHz |
| Memory | 128 MB ROM, 64 MB SDRAM, optional 256 MB NAND |
| Display | 2.8" TFT LCD, 240 × 320 pixels, 65K colors |
| Battery | Removable 1100 mAh Li‑polymer, 4 h charge time |
The dopod S1 measures 99.9 mm in length, 58 mm in width, and 13.9 mm in thickness.
It uses a removable 1100 mAh lithium‑polymer battery.
It is powered by a TI OMAP 850 processor running at 200 MHz.
