The ABB i-bus® EIB SMART Touchscreen is a high-quality EIB touch-sensitive display screen. This touchscreen can control 100 sets of devices, with a color display, and can be used for centralized control, monitoring, and indication of the entire EIB system.

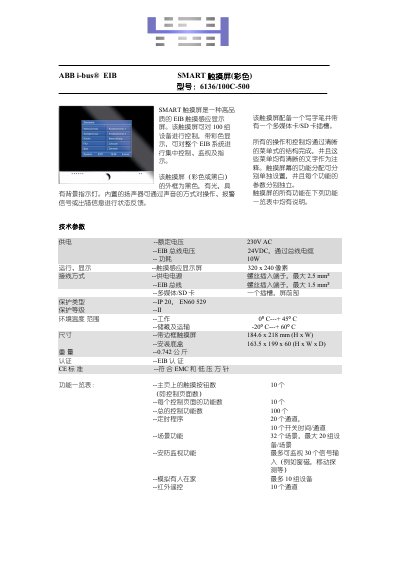

This manual describes the SMART touch screen panel model 6136/100C-500, including its technical parameters, wiring, and safety instructions. It covers the required power supplies (230 V AC, 24 V DC), display specifications (320 × 240 pixels), and environmental limits.
The document also explains how to install the panel, configure functions, program the unit via SD/MMC card or bus, and outlines the warranty terms and service procedures for Busch‑Jaeger devices. This manual is written in Japanese.
| Power Supply (AC) | 230 V AC |
|---|---|
| Display Resolution | 320 × 240 pixels |
| Operating Temperature | 0 °C to 145 °C |
| Storage Temperature | -20 °C to +60 °C |
| Dimensions (HxW) | 184.6 mm × 218 mm |
The unit can be programmed using an SD/MMC card or via the bus, with the programming steps described in the manual.
The touch screen has a resolution of 320 × 240 pixels.
The device can operate from 0 °C up to 145 °C.
