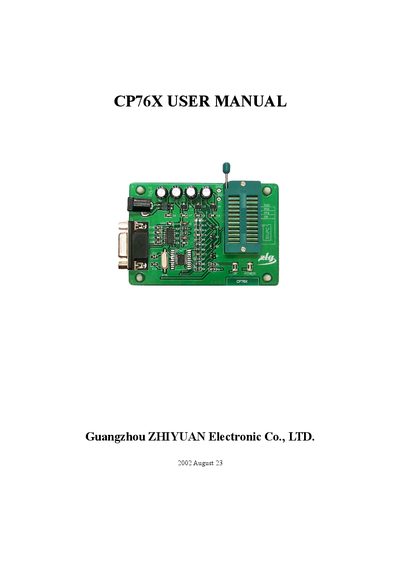

ZHIYUAN CP76x Programmer User Manual

CP76x is a programmer for programming 51LPC series MCU

Brand: CP76X
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 25
File format: PDF
File size: 705 KB
Published: 08 March, 2012
Updated: 30 September, 2023
MD5 checksum: 1B43329453E812D97DC4C058F18B7192
PDF: ZHIYUAN CP76x Programmer User Manual PDF

About this manual

The CP76x programmer, manufactured by Guangzhou ZHIYUAN Electronic Co., LTD., is a high‑reliability, high‑speed device used to program NXP 51LPC series microcontrollers. It offers features such as device auto‑detection, blank‑check, verification, and automatic serial‑number increment.

The manual covers general description, hardware setup, software installation requirements, the main window layout, menu functions, and detailed programming steps, including examples of loading Hex or Bin files, configuring device parameters, and using the auto‑program feature for large‑scale production.

What's inside

General Description
Setup
Software Installation
Main Window
Menu Functions
Function Description
Settings
Appendix 1 Store Configuration Information in Hex File
Appendix 2 An Example of Programming 51LPC Series MCUs with CP76x

Specifications

Power Supply	+15V, 5W
Supported MCUs	51LPC full series MCUs (P87LPC759‑P87LPC779)
Minimum PC CPU	Pentium processor or higher
Supported Operating Systems	Windows‑98, Windows NT 4.0 or higher
Minimum Monitor Resolution	800 × 600 or higher
Interface	Standard PC COM port

Frequently asked questions

What microcontrollers can the CP76x programmer program?

It supports the full series of 51LPC microcontrollers, including models P87LPC759 through P87LPC779.

What power supply is required for the CP76x programmer?

The device requires a +15 V power supply delivering 5 W.

How can large numbers of devices be programmed efficiently?

Use the Auto Program function, which automates the programming sequence for many devices.
