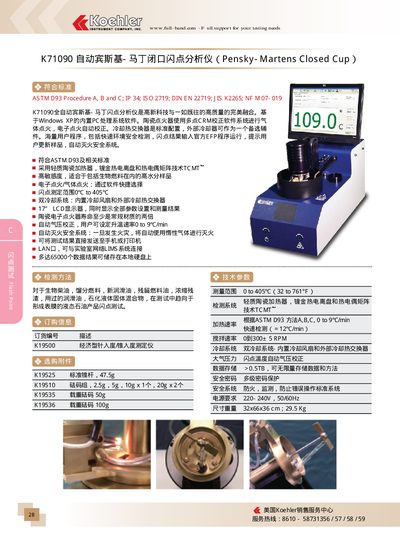

K71090 Automatic Pensky-Martens Closed Cup Flash Point Analyzer complies with ASTM D93 and related standards. It adopts lightweight ceramic heater, gold-plated thermal ionizer plate and thermocouple matrix technology TCMT™. It has high sensitivity and is suitable for high-moisture samples, including biofuels.
The K71090 Pensky‑Martens Closed Cup Flash Point Analyzer is a Windows‑XP based laboratory instrument for measuring flash points of fuels, lubricants and other liquids. It features a dual‑cooling system, a 17‑inch LCD, and automatic fire‑extinguishing using inert gas.
The manual provides instructions for setup, operation, data storage (up to 0.5 TB), connectivity via LAN, and safety procedures. Ordering information and accessory lists for various models (K87790, K87490, K47000) are also included. This manual is written in Chinese.
| Temperature measurement range | 0 °C to 405 °C |
|---|---|
| Cooling system | Dual cooling – internal fan and external heat‑exchange cooler |
| Display | 17‑inch LCD showing all parameters |
| Data storage capacity | Up to 0.5 TB (unlimited with external storage) |
| Physical dimensions | 32 × 66 × 36 cm |
| Weight | 29.5 kg |
| Power requirements | 220‑240 V, 50/60 Hz, single‑phase |
| Heating rate (ramp) | 0 to 9 °C/min (adjustable) |
| Safety system | Automatic fire‑extinguishing using inert gas |
It can measure flash points from 0 °C up to 405 °C.
The device includes an automatic fire‑extinguishing system that releases inert gas if a fire is detected.
It requires 220‑240 V, 50/60 Hz single‑phase power.
The analyzer can store up to 0.5 TB of data, with the option for unlimited external storage.
