RMB28 encoder modules are designed for OEM high volume direct integration applications. The low cost 28 mm square PCB can also be supplied with a connector for easy installation. The encoder module consists of a magnetic armature and a separate sensor board. The rotation of the magnetic armature is sensed by a customized encoder chip mounted on the sensor board and processed to provide the required output format. The output signals provided include industrial standard absolute, incremental, analog or linear formats. RMB28 can be widely used by OEMs including motor control and industrial automation.
The RMB28 series is a 28 mm square magnetic angle encoder module designed for OEM integration in motor control and industrial automation. It offers a variety of output formats—including absolute, incremental, analog, and linear voltage—tailored to different application needs.

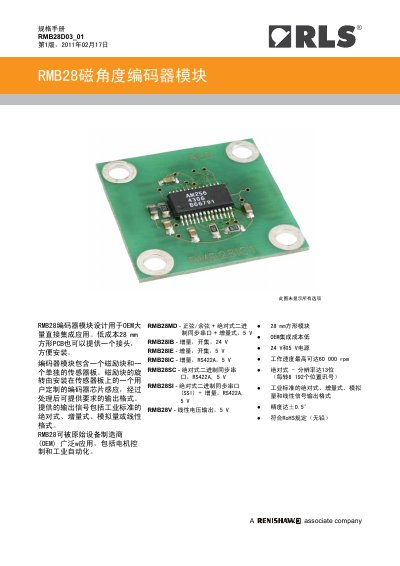

The manual provides mechanical dimensions, electrical parameters, resolution options, and part numbers for the magnetic block and mounting hardware, as well as contact information for the global sales support partner RLS d.o.o. This manual is written in Chinese.
| Module size | 28 mm square |
|---|---|
| Power supply (RMB28MD) | 5 V ± 5 % |
| Maximum speed | 60 000 rpm |
| Resolution | 13 bit (8192 positions per rev) |
The RMB28MD variant operates from a 5 V supply with a tolerance of ±5 %.
All RMB28 variants can operate up to 60 000 rpm.
The series offers absolute, incremental, analog, and linear voltage output formats.
