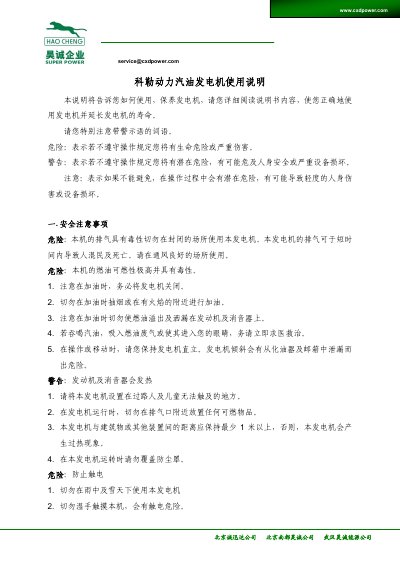

This document provides instructions for using the Kohler power gasoline generator produced by Beijing Haocheng Super Power Group, including safety precautions, fuel and oil preparation and inspection.
This user manual explains how to safely operate and maintain the Kohler petrol generator. It covers safety warnings, fuel and oil requirements, battery connections, and proper startup procedures.
Detailed sections describe load handling, shutdown procedures, regular checks, oil changes, and air‑filter maintenance to ensure reliable long‑term performance. This manual is written in Chinese.
| Fuel tank capacity | 21 L |
|---|---|
| Recommended fuel | Unleaded gasoline 90# or higher |
| Engine oil capacity | ≈1.8 L |
| Battery voltage | ≥12 V |
| Ground wire size | ≥4 mm |
| Cable size for load | 1 mm² / 4 A |
| Maximum continuous load | 80 % of rated power |
| Three‑phase load balance tolerance | ≤30 % per phase |
Use unleaded gasoline with an octane rating of 90 or higher.
Change the oil after the first 20 hours (or one month) of use, then every 100 hours (or six months).
A ground wire of at least 4 mm diameter must be used.
No, the generator must not be connected to a commercial power outlet.
