The Fluke F17B digital multimeter with a display of 4000 can measure temperature and frequency. It has testing functions for AC/DC voltage, AC/DC current, resistance, capacitance, diode, and temperature. The product is designed with safety in mind and has a frequency measurement range of up to 100KHz. It is a preferred brand for maintenance, repair, testing, and research professionals.
The Fluke F17B is a 4000‑count digital multimeter capable of measuring AC/DC voltage, current, resistance, capacitance, frequency up to 100 kHz, temperature, diode, and continuity. It features automatic and manual ranging, a hold function, and a robust safety‑rated design.

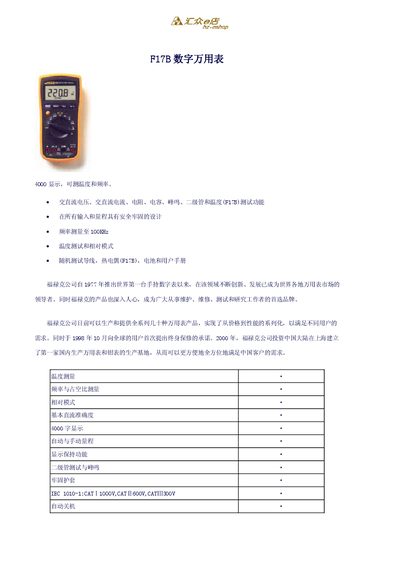

The manual also covers safety categories (IEC 61010‑1 CAT I 1000 V, CAT II 600 V, CAT III 300 V), battery replacement, warranty (one‑year warranty, 500 h battery life), and optional accessories such as a hanging bracket, test leads, and a clamp meter. This manual is written in Chinese.
| Frequency response | 40 Hz to 500 Hz |
|---|---|
| Current range | 0.1 µA to 10 A |
| Resistance range | 0.19 Ω to 40 MΩ |
| Capacitance range | 0.0 µF to 100 nF |
| Temperature range | -55 °C to 400 °C |
It has a 4000‑count display.
It complies with IEC 61010‑1: CAT I 1000 V, CAT II 600 V, CAT III 300 V.
The multimeter has a one‑year warranty and the battery lasts about 500 hours.
