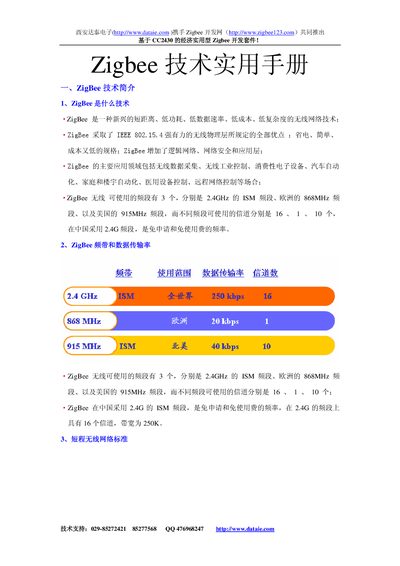

This document introduces the economical and practical Zigbee development kit based on CC2430, jointly launched by Xi'an Dataie Electronics and Zigbee Development Network. ZigBee is a wireless network technology that is short-range, low-power, low-data rate, and low-cost. It is suitable for wireless data acquisition, wireless industrial control, consumer electronics devices, etc. ZigBee wireless can use three frequency bands: 2.4GHz ISM band, 868MHz band in Europe, and 915MHz band in the United States. The development kit features low data rate, low power consumption, low cost, and large-scale network capacity.
This manual from Data Electronics introduces Zigbee technology, its low‑power, low‑cost wireless characteristics, supported frequency bands (2.4 GHz, 868 MHz, 915 MHz) and data rates. It explains network topologies such as star, tree and mesh, and describes device types like full‑function devices (FFD) and reduced‑function devices (RFD).\n\nThe document also provides detailed specifications for the DTD243A Zigbee module based on the CC2430 chip, including radio parameters, pin definitions and typical application scenarios in industrial control, medical monitoring and security systems. This manual is written in Chinese.
| Frequency band | 2.4~2.483 GHz |
|---|---|
| Main chip | CC2430‑F128 |
| Data transmission rate | 250 Kbps |
| Communication range | 50 m~70 m |
| Receive sensitivity | -94 dBm |
| Number of channels (2.4 GHz) | 16 |
| Encryption | AES‑128 |
| Power supply | 2.0 V~3.6 V |
| Operating temperature | -40 °C~8 °C |
Zigbee transmits data at a rate of 250 Kbps.
The 2.4 GHz band provides 16 separate channels.
Zigbee uses AES‑128 encryption for data security.
Device activation or channel access delay is about 15 ms, and device search delay is about 30 ms.
