RS-3012S3-S33 disk array is a new and powerful mid-range enterprise storage product launched by DFT, designed with the latest SAS technology. It has exceptional read and write performance and can be expanded up to 120TB. This product is ideal for applications such as medical imaging, databases, videos, high storage capacity, and high-performance computing.
The RS-3012S3-S33 SAS RAID system is a mid‑range enterprise storage solution featuring two SAS host channels, hot‑swap drive bays, and redundant power and cooling. It uses a high‑performance PowerPC 750GL 800 MHz RISC processor with up to 2 GB cache per controller and supports RAID 0, 1, 3, 5, 6, 10, 30, 50, 60 and N‑RAID.

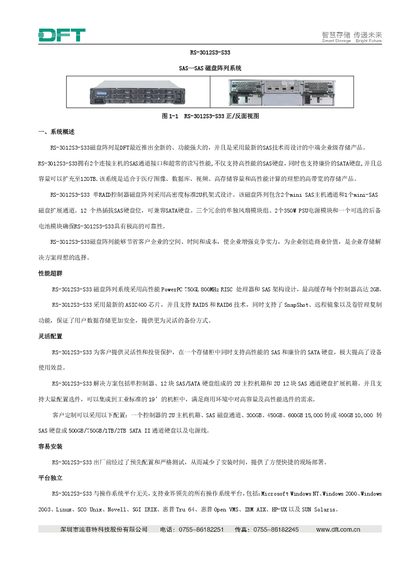

Management is performed through a browser‑based GUI that provides topology views, automatic load balancing, and alert notifications via buzzer, panel display, email or pager. The system is OS‑independent and works with Windows, Linux, Solaris, HP‑UX and many other platforms. This manual is written in Chinese.
| CPU | PowerPC 750GL 800 MHz RISC processor |
|---|---|
| Cache per controller | 2 GB |
| SAS host channels | 2 |
| Hot‑swap drive bays | 12 |
| Power supplies | 2 × 350 W hot‑swap PSUs |
| Maximum total capacity | 120 TB |
| Supported RAID levels | 0, 1, 3, 5, 6, 10, 30, 50, 60, N‑RAID |
| SAS host channel speed | 12 Gb/s per channel |
The system supports Microsoft Windows NT/2000/2003, Linux, SCO Unix, Novell, SGI IRIX, HP‑UX, Solaris, and many others.
It provides 12 hot‑swap SAS drive bays, which can also accept SATA drives.
Yes, it includes two hot‑swap 350 W power supply modules for redundancy.
The array supports RAID 0, 1, 3, 5, 6, 10, 30, 50, 60 and N‑RAID.
