This document describes the features and technical specifications of the PCJ16 receiver module, including learning code function, support for up to 10 different remote controllers, interlocking and jog output modes, PT2262 or EV1527 decoding modes, etc.
The PCJ16 is a compact RF receiver module that supports both PT2262 and EV1527 decoding protocols. It can learn up to ten remote controllers and offers selectable output modes (latch or non‑latch) via an external resistor.

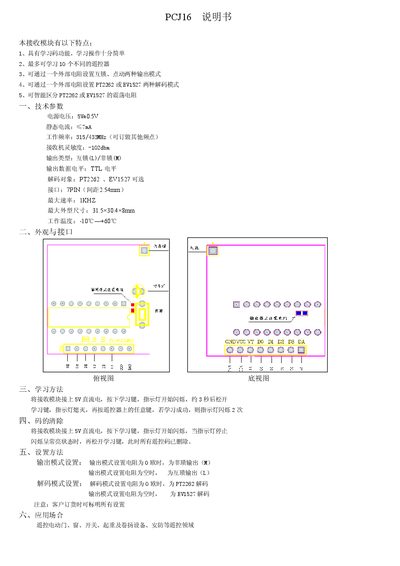

The manual describes power connection, learning key operation, code clearing, and configuration of output and decoding modes. Typical applications include remote‑controlled doors, windows, switches, hoists, and security systems. This manual is written in Chinese.
| Power supply voltage | 5只0.5V |
|---|---|
| Receiver sensitivity | -102 dBm |
| Output mode | Latch (L) / Non‑latch |
| Output data level | TTL |
| Decoding options | PT2262, EV1527 |
| Interface | 7‑pin, 2.54 mm pitch |
| Maximum data rate | 1 kHz |
| Dimensions | 31.5 × 30.4 × 8 mm |
| Operating temperature | -10 °C to +60 °C |
| Learning capacity | Up to 10 remote codes |
It can learn up to ten different remote controllers.
Press the learning key while the indicator is steady; the LED will flash to confirm that all stored codes have been deleted.
