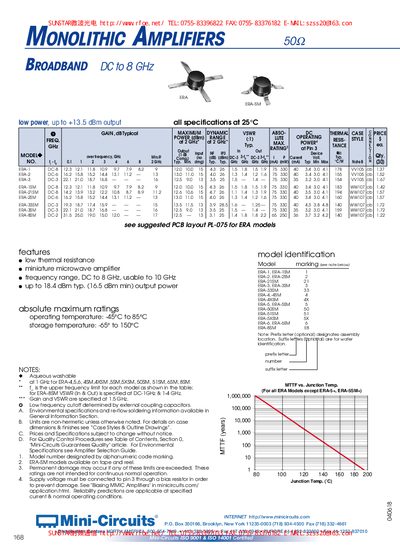

The document introduces Mini-Circuits' monolithic amplifier products, including models, features, and characteristics.
The Mini-Circuits Broadband 50 series provides low‑power monolithic microwave amplifiers covering DC to 8 GHz (up to 10 GHz in some models). The amplifiers deliver typical gains of around 12 dB and maximum output powers up to +13.5 dBm, with dynamic VSWR specifications and biasing guidelines for each ERA model.
Environmental limits include an operating temperature range of –45 °C to 85 °C and storage temperatures from –5 °C to 150 °C. The document lists model identification codes, bias resistor values, and ordering information for the ERA‑1, ERA‑2, ERA‑3, and related SM variants.
| Typical gain | ≈12 dB |
|---|
The typical gain is about 12 dB.
