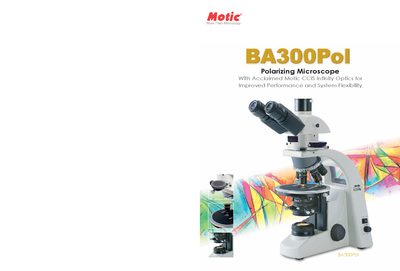

Motic BA300Pol microscope offers superb optical performance and flexibility in system expansion that can be applied to thin section petrography, mineralogy, industrial and medical applications. Unique CCIS infinity optics is employed to give high performance and system versatility.
The BA300Pol polarizing microscope offers high‑performance CCIS infinity optics, a robust symmetrical pyramid design, and a rotatable 360° stage for precise sample positioning. It includes an intermediate tube with a slider‑type analyzer, a focusable Bertrand lens, and a built‑in depolarizer, as well as a quadruple nosepiece with 4×, 10×, 40× and 60× strain‑free objectives.
The manual lists the standard and optional components, such as various eyepieces, video adapters, filters, and compensators, and provides a system diagram, dimensions, and contact information for Motic support centers worldwide.
| Stage diameter | 160 mm |
|---|---|
| Stage rotation increment | 0.1° (one‑degree increments to a tenth of a degree) |
| Condenser numerical aperture | 0.90 NA |
| Illuminator power | 6 V 30 W quartz halogen |
It uses an achromat, strain‑free condenser with a numerical aperture of 0.90.
A 6‑volt 30‑watt quartz halogen Koehler illuminator supplies light.
Anti‑fungal chemical agents are sealed inside objectives, eyepieces and observation tubes to release harmless vapor.
