RE1000ND is a multi-function wireless camera remote control from ADIDT. It can realize remote focusing and remote shutter release. It has the characteristics of remote wireless control, super remote control extension capability, low power consumption design, built-in electronic T-gate, large focus/shutter release button, etc. It is suitable for Nikon F5, F100, F90x, F90, D1x and other models.
The RE1000ND is a multi‑function wireless remote for cameras, offering remote shutter release up to 20 m and autofocus up to 15 m, with low‑power standby up to 100 h and encrypted operation to prevent accidental triggers. It works with Nikon models such as F5, F100, F90x, and Dlx, and includes data communication to a PC.

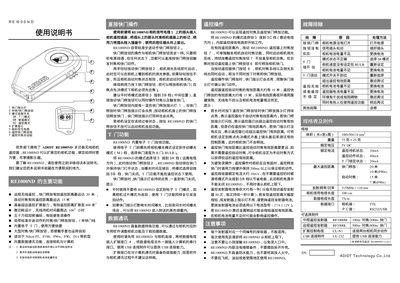

The manual explains how to connect the remote to the camera, select operating modes (remote, normal, four‑control), use the shutter and focus buttons, enable the electronic T‑door function, and perform troubleshooting. It also lists technical specifications, optional accessories, and safety warnings. This manual is written in Chinese.
| Dimensions | 100 × 50 × 14 mm |
|---|---|
| Weight | 75 g + 25 g |
| Rated Voltage | 5 VDC |
| Standby Current | 10 mA |
| Operating Current (action) | 40 mA |
| T‑door Lock Current | 20 mA |
| Max Remote Distance (shutter release) | 20 m |
| Max Remote Distance (auto‑focus) | 15 m |
| Transmission Frequency / Power | 315 MHz / <10 mW |
| Camera Signal Cable Length | 100 cm |
| Data Cable Length | 75 cm |
| Data Interface | TTL (camera side), RS232/USB (PC side) |
