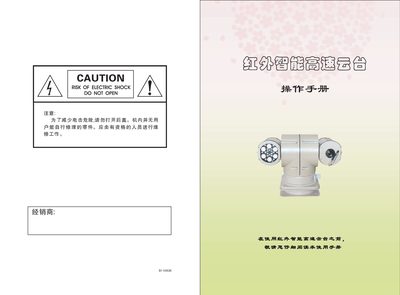

This document is the operation manual of the infrared intelligent high-speed pan-tilt, which mainly introduces the product's characteristics, functions, pan-tilt settings, common faults and other contents
This manual provides detailed instructions for installing and configuring the infrared intelligent high‑speed PTZ unit. It includes safety warnings, mechanical dimensions, mounting options, wiring diagrams, and step‑by‑step installation procedures.
The document also describes the PTZ’s functional features, such as multi‑protocol decoding, preset positions, automatic patrol, and special control functions, along with troubleshooting tips, lightning/surge protection guidelines, and cleaning procedures for the transparent window. This manual is written in Chinese.
| Power Supply | AC 24 V or DC 12 V (customizable) |
|---|---|
| Maximum RS485 Load | 64 effective loads (master + slaves) |
| Supported Baud Rates | 2400 bps (1800 m), 4800 bps (1200 m), 9600 bps (800 m) |
| IP Rating | IP66 |
| Horizontal Rotation | 360° continuous |
| Vertical Rotation Range | -87° to +93° |
| Preset Positions | 128 programmable preset points |
