TSFU-08CH Module is a special fuse unit developed for machine tool electrical protection. It has the advantages of simple connection, wide application range, safe use and automatic alarm in the event of a break. It has 8 fuse channels in total.
The TSFU-08CH module is a fuse unit designed to protect machine‑tool electrical equipment. It features simple connections, a wide application range, safe use, and automatic fault alarm. The module provides eight independent fuse channels.

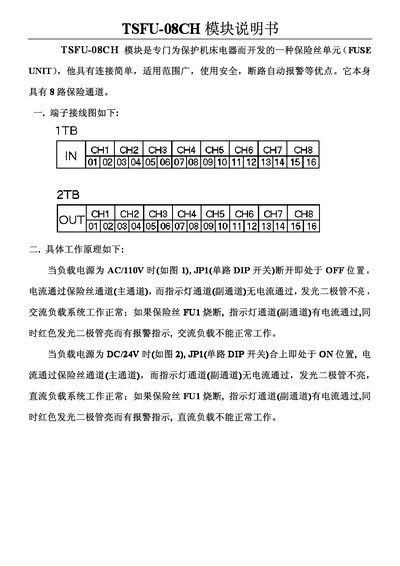

The document includes terminal wiring diagrams, explains the operating principle for both AC 110 V and DC 24 V loads, and provides mechanical dimensions for PCB and installation. JP1 DIP switch selects AC (OFF) or DC (ON) mode, and the indicator LEDs show fault status. This manual is written in Chinese.
| Number of fuse channels | 8 |
|---|---|
| PCB size | 100 mm (D) × 72 mm (W) |
| Installation size | 103 mm × 85 mm × 60 mm |
| AC operating voltage | 110 V |
| DC operating voltage | 24 V |
