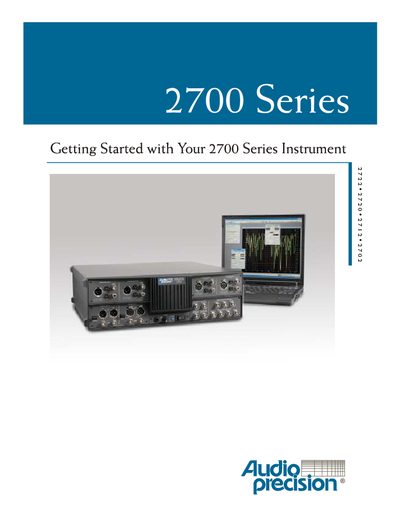

This document is an introductory guide to the Audio Precision 2700 series instruments, describing the features and characteristics of models such as SYS-2722, SYS-2720, SYS-2712, and SYS-2702.
This manual introduces the 2700 Series instruments, covering safety information, installation, hardware overview, and control software. It includes detailed instructions for connecting the instrument to a PC, configuring power settings, and using the software interface.
The document also contains quick guides, specifications, and cable information for both analog and digital connections, as well as safety and environmental guidelines for proper use and maintenance.
| Maximum AC input voltage | 250 V rms |
|---|---|
| Supported AC voltage settings | 100, 120, 230, or 240 V rms |
| Installation Category | CAT II |
| Digital audio cable length (CAB‑AES) | 39 in (1 m) |
| Digital audio cable type | AES/EBU XLR to BNC, double‑shielded |
The instrument includes AES/EBU XLR to BNC cables that are double‑shielded for improved EMI performance.
