SHEPHHRD DSP CCD Colour Camera DSP Infrared CCD Colour Camera Model: SSC-312LP/314LP(PAL) SSC-312HP/314HP(PAL) Model: SSC-412LP/414LP(PAL) SSC-412HP/414HP(PAL) Manual

This document is the installation manual for SHEPHERD DSP CCD color camera and DSP infrared CCD color camera. It introduces the features of the products and provides installation instructions.

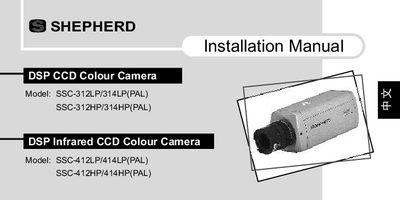

SHEPHHRD DSP CCD Colour Camera DSP Infrared CCD Colour Camera Model: SSC-312LP/314LP(PAL) SSC-312HP/314HP(PAL) Model: SSC-412LP/414LP(PAL) SSC-412HP/414HP(PAL) Manual - cover page
Brand
SHEPHHRD
Category
Digital cameras
Document type
Installation Guide
Language
English
Pages
18
File format
PDF
File size
274 KB
Published
28 February, 2012
Updated
29 September, 2023
MD5 checksum
73486580AEB30A781A0F8B4017C7CBE9
PDF
SHEPHHRD DSP CCD Colour Camera DSP Infrared CCD Colour Camera Model: SSC-312LP/314LP(PAL) SSC-312HP/314HP(PAL) Model: SSC-412LP/414LP(PAL) SSC-412HP/414HP(PAL) Manual PDF

About this manual

This installation manual provides step‑by‑step guidance for setting up Shepherd's SSC‑312/314 and SSC‑412/414 series DSP CCD colour and infrared cameras. It includes safety precautions, power‑supply connections, and mechanical mounting instructions.

The document also lists the applicable EMC and safety directives, environmental operating limits, and key electrical specifications such as supply voltage, current draw, and minimum illumination requirements.

What's inside

  • Safety and EMC Compliance
  • Installation Procedure
  • Power Supply Requirements
  • Current Consumption
  • Minimum Illumination
  • Model Overview
