BL-E800CB18, BL-E800CB23 and BL-E800CB30 are high-definition IP network high-speed balls, equipped with the world's leading 18 times optical zoom, high-definition up to 540TVL, the minimum illumination 0. 0005Lux/F1. 6 integrated core, with high-performance CCD sensor, standard H. 264 compression encoding, three-dimensional intelligent positioning, embedded WEB browsing and other features.
The BL‑E800CB series are high‑performance surveillance cameras equipped with up to 30× optical zoom, high‑resolution CCD sensors and low‑light sensitivity down to 0.0005 Lux. They support both PAL and NTSC video standards and can be controlled via Ethernet, LAN or WAN from any PC.

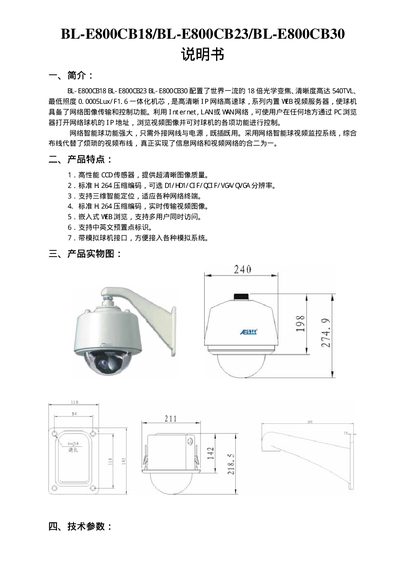

The document provides detailed technical parameters for each model (BL‑E800CB18, BL‑E800CB23, BL‑E800CB30), including optical and digital zoom, sensor type, minimum illumination, and additional functions such as SSNR noise reduction and multi‑language on‑screen menus. This manual is written in Chinese.
| Optical Zoom (BL‑E800CB18) | 18× |
|---|---|
| Digital Zoom (BL‑E800CB18) | 12× |
| Resolution (All models) | >480 TVL |
| Image Sensor (BL‑E800CB18 & BL‑E800CB30) | 14" SONY Exview HAD CCD |
| Image Sensor (BL‑E800CB23) | 174" SONY Exview HAD CCD |
| Supported Video Standards | PAL / NTSC |
The BL‑E800CB18 provides an 18× optical zoom.
The BL‑E800CB23 uses a 174" SONY Exview HAD CCD sensor.
Both PAL and NTSC formats are supported.
