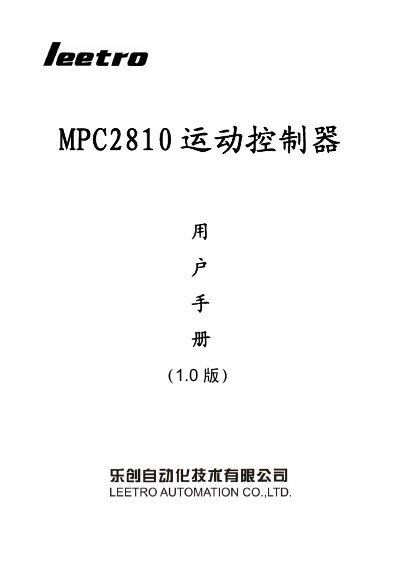

MPC2810 is a high-performance general-purpose controller. This manual introduces the specifications and usage of MPC2810. Please fully understand the usage function of MPC2810 before using it.
The MPC2810 motion controller is a PC‑based controller that can drive up to four stepper or digital servo axes. It connects to a PC via a PCI interface and includes Windows DLLs for easy integration with development tools such as Visual Basic, C++, Delphi, and other 32‑bit Windows environments. The controller supports linear and circular interpolation, high‑speed pulse output up to 2 MHz, and extensive I/O options.
The manual covers safety warnings, detailed wiring procedures, hardware and software installation, parameter configuration, and system debugging. It also provides typical wiring diagrams for connecting the controller to driver modules such as DMD808 and Panasonic MINAS A series, as well as guidance on using the parameter‑setting interface. This manual is written in Chinese.
| Main interface | PCI (3.3 V / 5 V dual) |
|---|---|
| Encoder inputs (per card) | 2 (3‑phase A/B/Z) |
| Pulse output maximum frequency | 2 MHz |
| General digital inputs | 19 (DC 24 V optocoupled) |
| General digital outputs | 24 (max 500 mA per channel) |
| Special inputs per axis | 4 (limit+, limit‑, origin, deceleration) |
| Supported operating systems | Windows 2000, Windows XP |
The controller can output pulses at a maximum frequency of 2 MHz.
The controller supports Windows 2000 and Windows XP.
