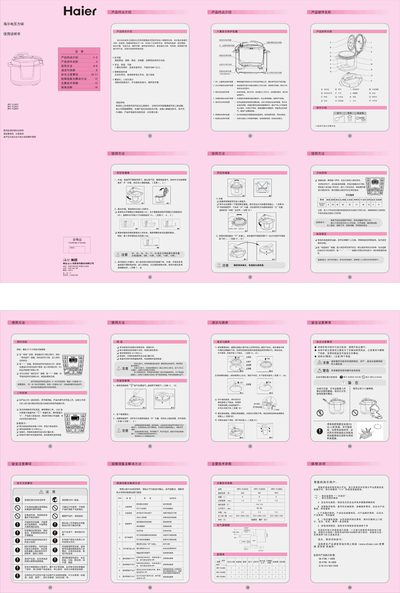

This manual provides step‑by‑step instructions for safely operating Haier electric pressure cookers (models HPC‑YLS403, HPC‑YLS503, and HPC‑YLS603). It covers initial setup, cooking functions, safety protections, and troubleshooting.
The guide also details cleaning procedures, parts identification, technical specifications, and warranty information, helping users maintain optimal performance and resolve common issues. This manual is written in Chinese.
| Model | HPC‑YLS403 / HPC‑YLS503 / HPC‑YLS603 |
|---|---|
| Rated Power (W) | 800 W (403), 900 W (503), 1000 W (603) |
| Capacity (L) | 4 L (403), 5 L (503), 6 L (603) |
| Inner Pot Wall Thickness (mm) | 1.5 mm (403), 1.8 mm (503/603) |
| Pot Temperature (°C) | 110‑116 °C |
| Working Pressure (kPa) | 60‑80 kPa |
| Net Weight (kg) | 4.2 kg (403), 4.6 kg (503), 5.0 kg (603) |
| Dimensions (mm) | 300 × 260 × 290 mm (403), 350 × 290 × 300 mm (503), 350 × 290 × 340 mm (603) |
Pull the support cover up, remove the sealing ring, clean it with water, then reinstall.
