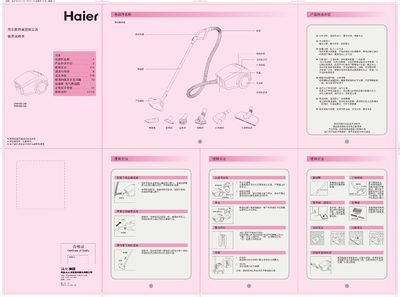

This manual begins with safety precautions and step‑by‑step assembly instructions for the Haier ZW1600‑268 and ZW1800‑260 vacuum cleaners. It explains how to attach the telescopic pipe, select and install the various brushes, and secure the front cover before first use.
Subsequent sections cover normal operation, including power‑adjustable suction, LED lighting, and remote control handling. Cleaning and maintenance procedures such as emptying the dust cup, washing filter elements, and storing the unit are detailed, followed by a troubleshooting guide, technical specifications, warranty information, and proper disposal instructions. This manual is written in Chinese.
| Model | ZW1600-268 / ZW1800-260 |
|---|---|
| Rated Voltage | 220 V |
| Rated Frequency | 50 Hz |
| Rated Input Power | 1600 W / 1800 W |
| Power Adjustment Range | 250 W‑1600 W (ZW1600‑268), 250 W‑1800 W (ZW1800‑260) |
| Maximum Vacuum Pressure | 28 kPa / 30 kPa |
| Noise Level | 82 dB(A) |
Pull the dust cup upward, gently shake it, open the cup and discard the collected debris.
Remove the filter element, clean or replace it, and reinstall it securely; the filter must be fully seated before closing the front cover.
The ZW1600‑268 can be adjusted from 250 W to 1600 W, while the ZW1800‑260 ranges from 250 W to 1800 W.
The device produces a noise level of approximately 82 dB(A).
