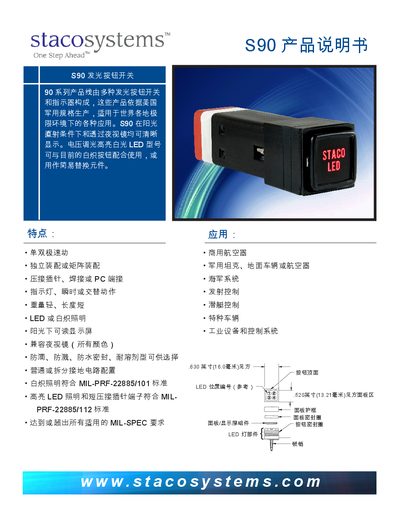

This document introduces the features and characteristics of the 90 series product line, including single and double pole high-speed action, independent assembly or matrix assembly, crimping, welding or PC terminal connection, etc. The products are lightweight, compact, and have LED or incandescent lighting, drip-proof, splash-proof, and waterproof sealing options. They also meet or exceed all applicable MIL-SPEC requirements.
The S90 series from Staco Systems consists of illuminated button switches and indicators designed to meet MIL‑SPEC requirements for extreme environments. They are suitable for commercial aircraft, military tanks, ground vehicles, naval systems, launch control, submarines, special vehicles, and industrial equipment, offering options such as single or dual action, LED or incandescent illumination, and night‑vision compatibility.
The document lists mechanical dimensions, actuation force, torque, environmental ratings, and terminal options. It also includes environmental test standards (MIL‑STD‑202, MIL‑PRF‑22885) and weight ranges for different configurations. This manual is written in Chinese.
| Mechanical travel | 0.130" ± 0.030" (3.302 ± 0.762 mm) |
|---|---|
| Maximum actuation force | 5 lbs (22 N) |
| Assembly torque | 10 ± 2 oz·in (0.071 ± 0.014 Nm) |
| Panel rear length | 1.30" (33.02 mm) |
| Weight | 0.59 - 1.09 oz (17‑31 g) |
| Operating temperature | -55°C to 71°C |
| Storage temperature | -55°C to 85°C |
| Terminal options | Crimp pins, solder, or PC connector |
The S90 switch operates from –55 °C up to 71 °C.
The maximum actuation force is 5 lbs (22 N).
The switch can be terminated with crimp pins, soldered connections, or a PC connector.
Yes, the S90 switch is compatible with night‑vision goggles.
