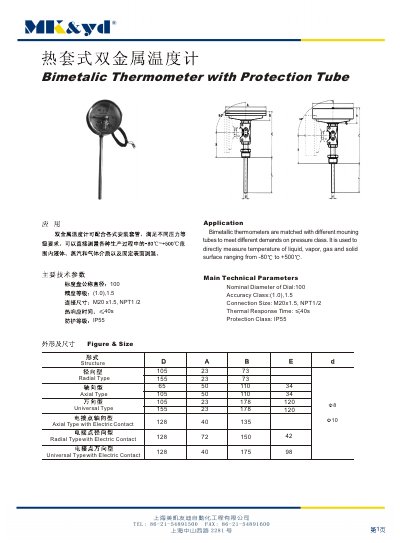

The document describes a bimetallic thermometer with a protection tube, designed to meet different pressure class requirements. It can directly measure the temperature of liquids, vapors, gases, and solid surfaces ranging from -80 to +500 degrees Celsius.
The document describes Bimetalic thermometers equipped with protection tubes, covering their application range, technical parameters, and available structural types. It lists key performance data such as measuring range, accuracy class, connection sizes, thermal response time, and protection class.
Additional sections explain mounting and fixing methods, protection‑tube options, and guidelines for selecting the appropriate type based on accuracy, range, and pressure requirements. Example configurations illustrate typical installations.
| Nominal Diameter of Dial | 100 |
|---|---|
| Accuracy Class | (1.0), 1.5 |
| Connection Size | M20x1.5, NPT 1/2 |
| Thermal Response Time | <40 s |
| Protection Class | IP55 |
| Measuring Range | -80°C to +500°C |
It can measure temperatures from –80 °C up to +500 °C.
The thermal response time is less than 40 seconds.
The thermometer is rated at IP55 protection class.
