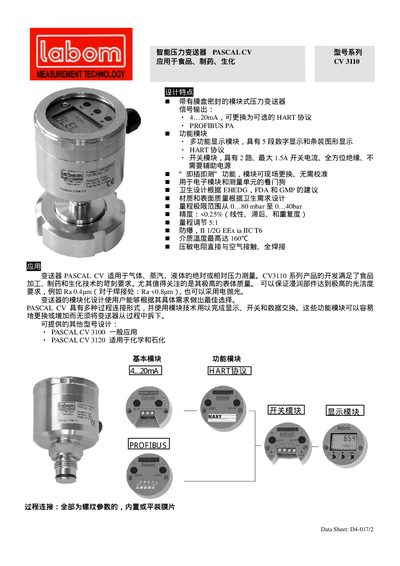

The intelligent pressure transmitter PASCAL CV is a modular pressure transmitter suitable for industries such as food, pharmaceutical, and biochemical. It has various functional modules, including signal output module, display module, and switch module. The transmitter is designed with hygienic considerations, with materials and surface quality meeting hygiene requirements. Its measuring range is from 0 to 80 mbar to 0 to 40 bar, with an accuracy of less than 0.25%. The transmitter also has explosion-proof function and high temperature resistance. Customized selection can be made based on specific requirements through modular design.
The Pascal CV3110 is a pressure transmitter designed for food, pharmaceutical and industrial applications. It offers a measurement range up to 100 % of full scale (0‑4 bar abs) with an accuracy better than 0.25 % of reading and a temperature operating range from –20 °C to +85 °C. The device is protected to IP66 and complies with EN 60529.
The transmitter supports HART and PROFIBUS PA communication, provides a 4‑20 mA output (0.4‑20 mA for HART), and can be powered from 12‑40 VDC. Calibration ratio is 5:1, and various alarm and scaling settings are configurable via the device’s parameters. This manual is written in Chinese.
