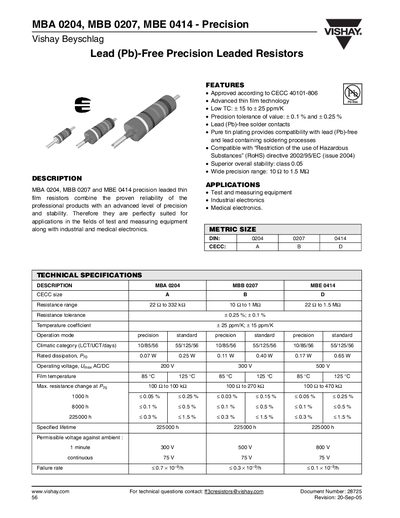

MBA 0204, MBB 0207 and MBE 0414 precision leaded thin film resistors combine the proven reliability of the professional products with an advanced level of precision and stability. Therefore they are perfectly suited for applications in the fields of test and measuring equipment along with industrial and medical electronics.
The MBA 0204, MBB 0207 and MBE 0414 are thin‑film, lead‑free precision resistors designed for test equipment, industrial and medical electronics. They combine high stability, low temperature coefficient and RoHS compliance.
The document lists detailed electrical parameters, mechanical dimensions, packaging options and the extensive test procedures used to qualify the parts. It also includes approvals, environmental ratings and failure‑rate data required for reliability planning.
| Resistance range | 22 Ω to 332 kΩ (MBA 0204), 10 Ω to 1 MΩ (MBB 0207), 22 Ω to 1.5 MΩ (MBE 0414) |
|---|---|
| Resistance tolerance | +0.25 % (MBB 0207), +0.1 % (MBA 0204) |
| Temperature coefficient | +15 ppm/K (MBA 0204), +25 ppm/K (MBB 0207) |
| Rated dissipation | 0.07 W (MBA 0204), 0.25 W (MBB 0207), 0.65 W (MBE 0414) |
| Maximum operating voltage | 200 V (MBA 0204), 300 V (MBB 0207), 500 V (MBE 0414) |
| Climatic category (LCT/UCT/days) | 10/85/56 (MBA 0204), 55/125/56 (MBB 0207, MBE 0414) |
| Failure rate | <0.7 × 10⁻⁶ h⁻¹ (MBA 0204), <0.3 × 10⁻⁶ h⁻¹ (MBB 0207), <0.1 × 10⁻⁶ h⁻¹ (MBE 0414) |
The MBA 0204 resistor has a low temperature coefficient of +15 ppm/K.
The MBE 0414 resistor can be operated up to 500 V AC/DC.
The MBB 0207 resistor is available with a tolerance of ±0.25 %.
The MBA 0204 resistor is rated for 0.07 W dissipation.
