ULTRAPROBE® 10,000 is the world's most advanced ultrasonic diagnostic system, allowing for condition analysis, sound recording, storage, and data processing. Ultraprobe 10,000 features on-board recording capabilities, allowing you to record sound samples directly on the instrument and store them in one of the 400 available record files. Using the Ultraprobe 10,000 system, you can test the way you want, with specific application screens, adjustable On/Off features, connection to external devices, and flexible reporting options. Users can easily use Ultraprobe 10,000's spin and click technology to simplify recording, data collection, system customization, and data input. ULTRAPROBE® 10,000 is a complete ultrasonic resource management system, suitable for everyone. No matter what you are testing for, Ultraprobe 10,000 has specialized software applications, with just the press of a button, you can select a professional field application, and obtain accurate reports and analysis. Choose from 6 applications: undefined, leak, valve, bearing, electric, or steam, Ultraprobe 10,000 can automatically set relevant fields, providing convenience for your data records. All stored data can be easily downloaded to Ultratrend DMS software.
The ULTRAPROBE 10,000 is a handheld ultrasonic leak detection system that records, stores, and analyzes sound data for a variety of applications such as bearings, valves, steam, and vacuum leaks. It features the Spin and Click technology for simple operation with just two actions – rotate and press – to start recording, adjust sensitivity, and export data.

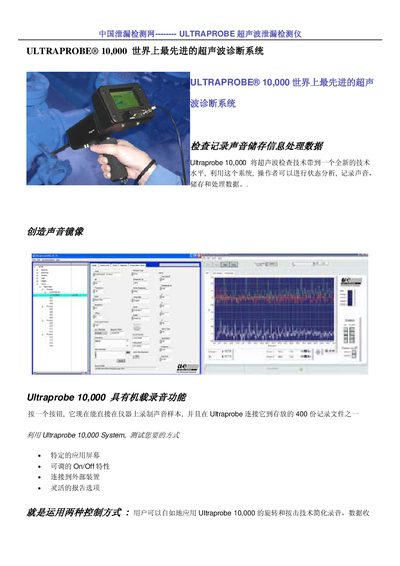

The manual describes the complete instrument package, including the handheld unit, recording device, memory card reader, I/O cables, Trisonic scanning module, stethoscope module, long‑range module, and supporting software (UE Spectralyzer and Ultratrend DMS). It also lists technical specifications, warranty information, and typical application examples. This manual is written in Chinese.
| Frequency range | 20 kHz to 100 kHz (1 kHz steps) |
|---|---|
| Response time | <10 ms |
| Display | 64 × 128 LCD with LED backlight |
| Memory capacity | 400 storage slots |
| Battery | NiMH rechargeable battery |
| Operating temperature | 32 ~ 122 °F (0 ~ 50 °C) |
| Outputs | dB, frequency, RS‑232 data output |
| Probe heads | Trisonic scanning module, stethoscope module, long‑range module |
| Detection capability | Detects 0.005" (0.127 mm) leak at 5 psi within 50 ft |
| Weight (hand unit) | 2.35 lb (1.1 kg) |
| Weight (full set) | 19 lb (8.6 kg) |
The device provides 400 storage slots for recorded data.
It operates from 20 kHz up to 100 kHz, adjustable in 1 kHz steps.
Data can be downloaded via RS‑232 output or by using the compact memory card reader.
The package includes the handheld unit, recording device, Spin‑and‑Click control, compact memory card and reader, I/O cables, Trisonic scanning module, stethoscope module, long‑range module, software, charger, and a Zero‑Halliburton aluminum carrying case.
