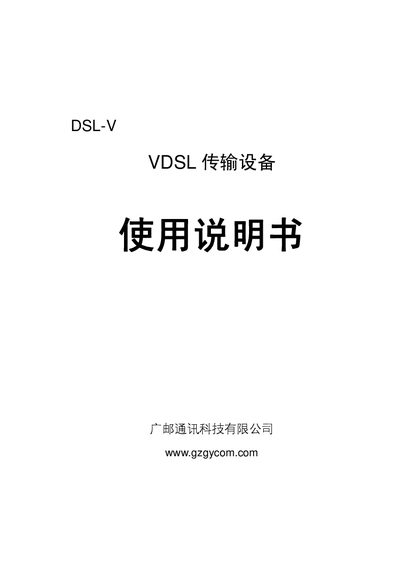

DSL-V is a VDSL transmission device produced by Guangyou Communications Technology Co., Ltd. It has the following features:
The DSL‑V VDSL transfer equipment is a compact broadband networking device that supports 10/100 Mbps auto‑negotiated Ethernet and VDSL data transmission. It features front‑panel indicator LEDs, multiple RJ‑45, POTS, and LINE ports, and a power input range of 160‑260 VAC.
This manual covers safety precautions, the package contents, hardware installation, network configuration, indicator meanings, self‑test procedures, troubleshooting, cable and connector information, and detailed technical specifications such as data rates, environmental limits, dimensions, and regulatory compliance. This manual is written in Chinese.
| Standards | ETSITS 101 270‑1/-2, draft ETSI IIU and ANSI VDSL standards |
|---|---|
| Ethernet Interfaces | IEEE 802.3 10BASE‑T and IEEE 802.3u 100BASE‑TX/FX |
| Data Transfer Rate (high speed) | 12.5 Mbps symmetric up/down |
| Data Transfer Rate (low speed) | 1.5 Mbps up / 4.5 Mbps down |
| Network Cable Types | 10BASE‑T; 2‑pair UTP Cat 3‑5 (100BASE) or STP 100‑ohm |
| AC Input Voltage | 160‑260 VAC, 50/60 Hz |
| Power Consumption | Maximum 10 W |
| Operating Temperature | 0 °C ~ 50 °C (32 °F ~ 122 °F) |
| Storage Temperature | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity Range | 5 % ~ 95 % non‑condensing |
| Dimensions | 200 mm × 230 mm × 30 mm |
| Weight | 0.7 kg |
| EMI / Regulatory Compliance | FCC Class A, CE Mark Class A, VCCI Class A, BSMI Class A, C‑Tick Class A |
Read the manual, unplug the device before cleaning, keep it away from water or moisture, place it on a stable, flat surface, ensure good ventilation, use the correct voltage, do not open the housing while powered, and store it between –20 °C and 70 °C.
