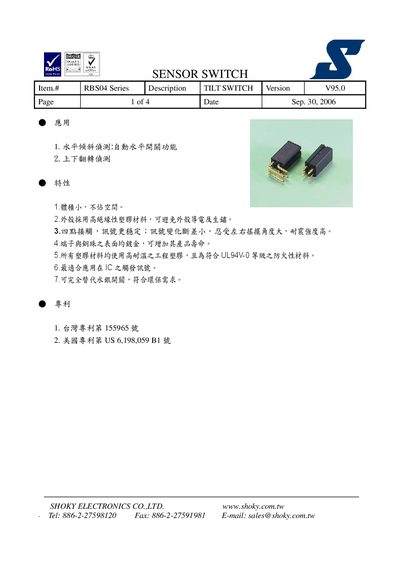

This document describes the SENSOR SWITCH RBS04 series tilt switch, which features small size, high insulation, stable signal, and high shock resistance. It is suitable for horizontal tilt and upside-down detection and can replace mercury switches.
This manual describes the RBS04 series sensor switch, a tilt‑type switch designed for automation and electronic equipment. It includes detailed electrical and mechanical characteristics, environmental limits, and recommended installation practices.
The document also lists packaging details, handling precautions, and safety notes for use in high‑reliability applications such as life‑support or aerospace equipment. Users are advised to follow the OFF‑DELAY design recommendations and perform contact resistance testing during installation. This manual is written in Japanese.
| Operating temperature | -25°C to +85°C |
|---|---|
| Storage temperature | -40°C to +85°C |
| Contact rating | 25 mA, 24 VDC |
| Initial contact resistance | 50 Ω (max) |
| Maximum contact resistance | 100 Ω (max) |
| Insulation resistance | 1000 MΩ (min) |
| Dielectric strength | 500 VDC (min) |
| Capacitance | 5 pF (max) |
| Mechanical life (cycles) | 100,000 cycles |
| Contact resistance (minimum) | 90 % or higher |
The switch operates from –25 °C up to +85 °C.
It is rated for 100,000 mechanical cycles.
The contact rating is 25 mA at 24 VDC.
Do not exceed the rated load, avoid using water‑soluble cleaning agents, and follow the OFF‑DELAY design recommendations for high‑reliability applications.
